“Davies” C1 Piston Pump Spare Parts
The C Series (formally known as Davies C1) is a single cylinder double-acting piston pump especially adapted for open or pressure tank service. The enclosed type of crankcase is designed to meet a demand for a pump which has a minimum of exposed working parts, thereby securing maximum safety of operation as well as good lubrication. The pump is suitable where the vertical distance to the lowest water level does not exceed 7.6 metres (25 feet).
C1 STANDARD SERIES SPECIFICATIONS:
Maximum Flow: 500 Gallons/Hour (38 litres/minute)
Maximum Head: 300 Feet / 90 metres / 130 psi
Inlet: 32mm
Outlet 32mm
Horsepower Required: 1.5
Cup/Washer Size: 2 3/4 inch
Gland Packing Size: 6.5mm
Oil: SAE 30 grade
C1 HIGH PRESSURE SERIES SPECIFICATIONS:
Maximum Flow: 300 Gallons/Hour (23 litres/minute)
Maximum Head: 500 Feet / 150 metres / 213 psi
Inlet: 32mm
Outlet 32mm
Horsepower Required: 1.5
Cup/Washer Size: 2 inch
Gland Packing Size: 6.5mm
Oil: SAE 30 grade

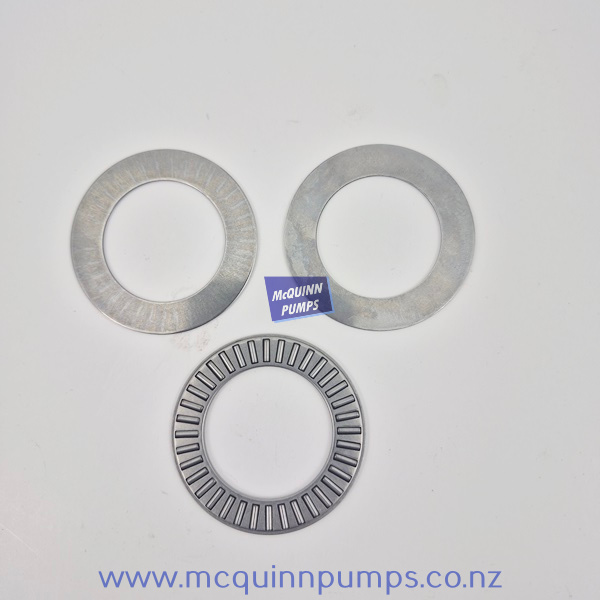

Please see below for a list of parts, and be sure to click the download button below it for the full PDF. The PDF has several pages of C1 Information & Maintenance tips.
